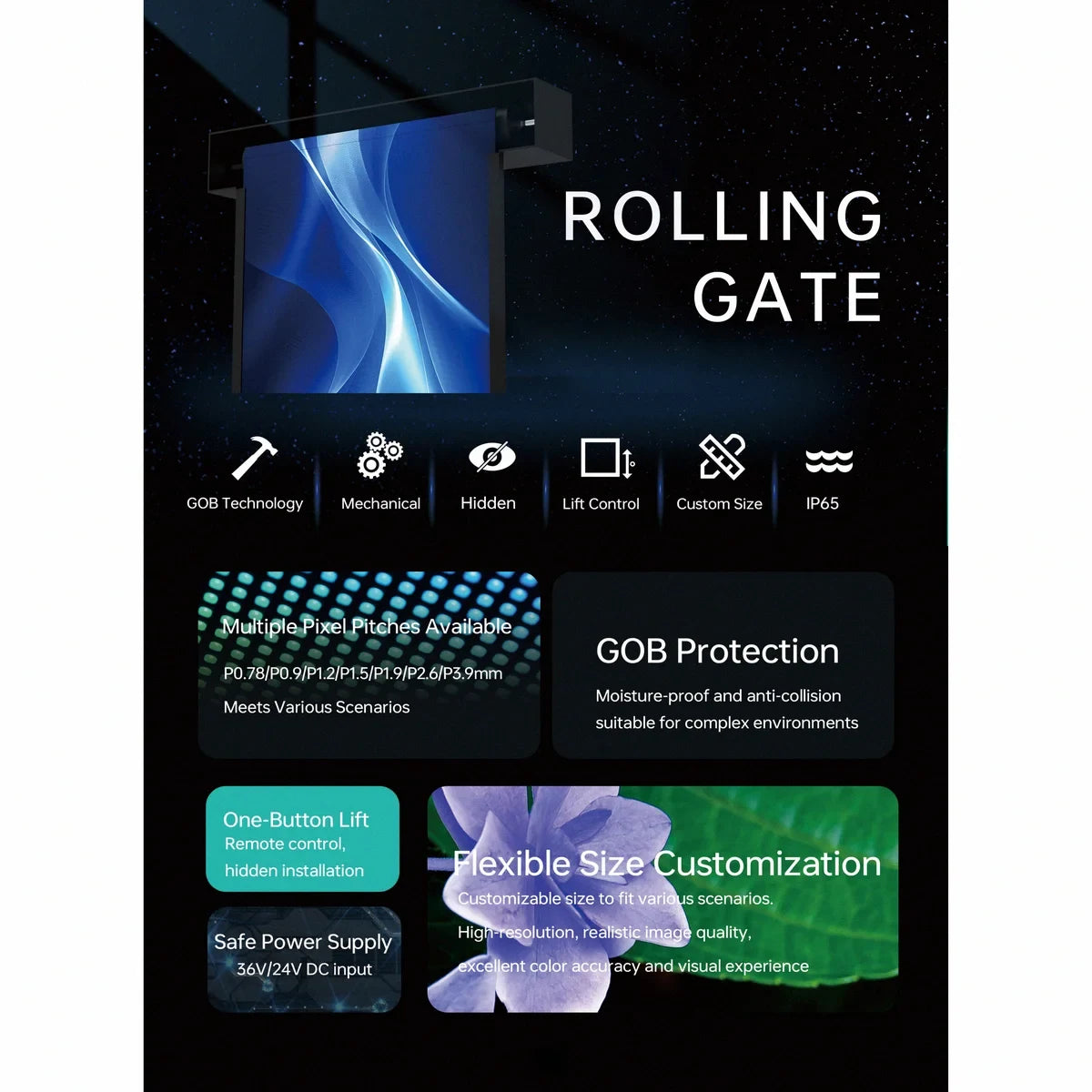

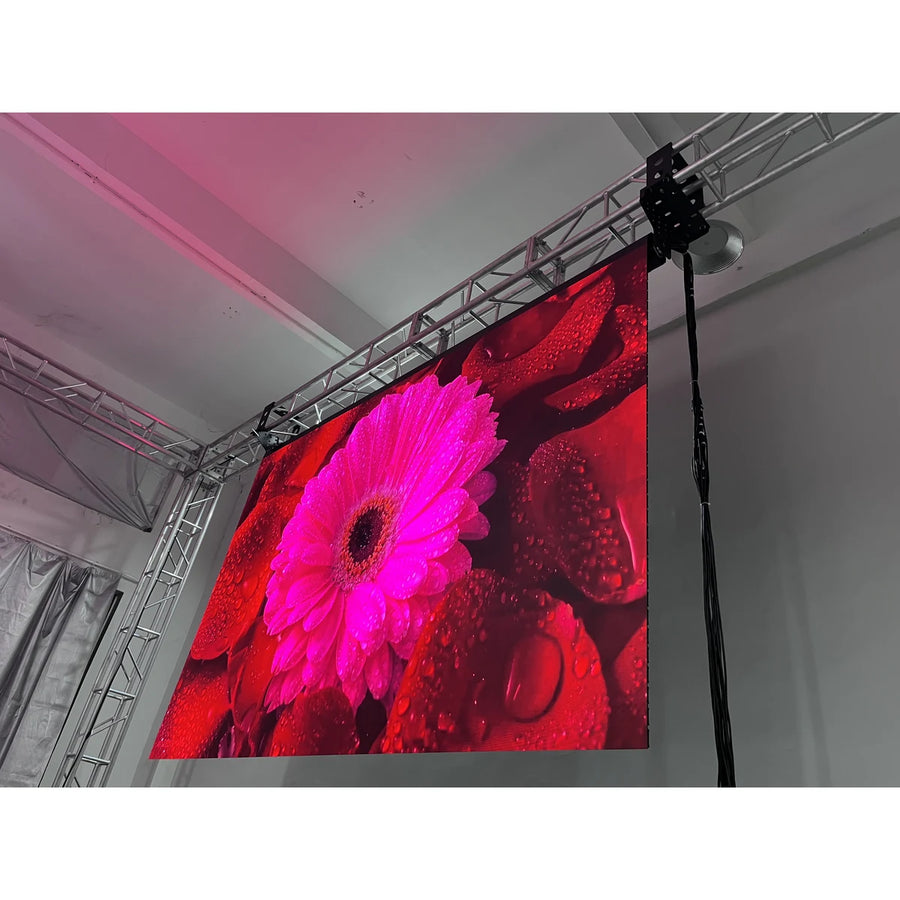

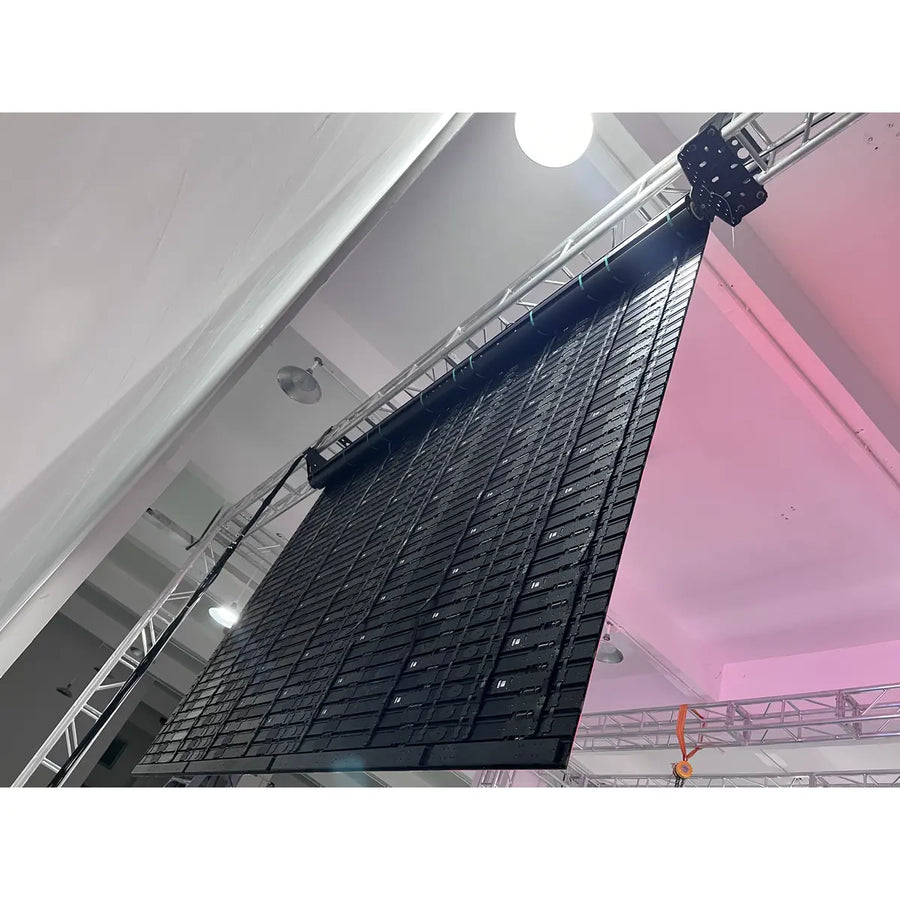

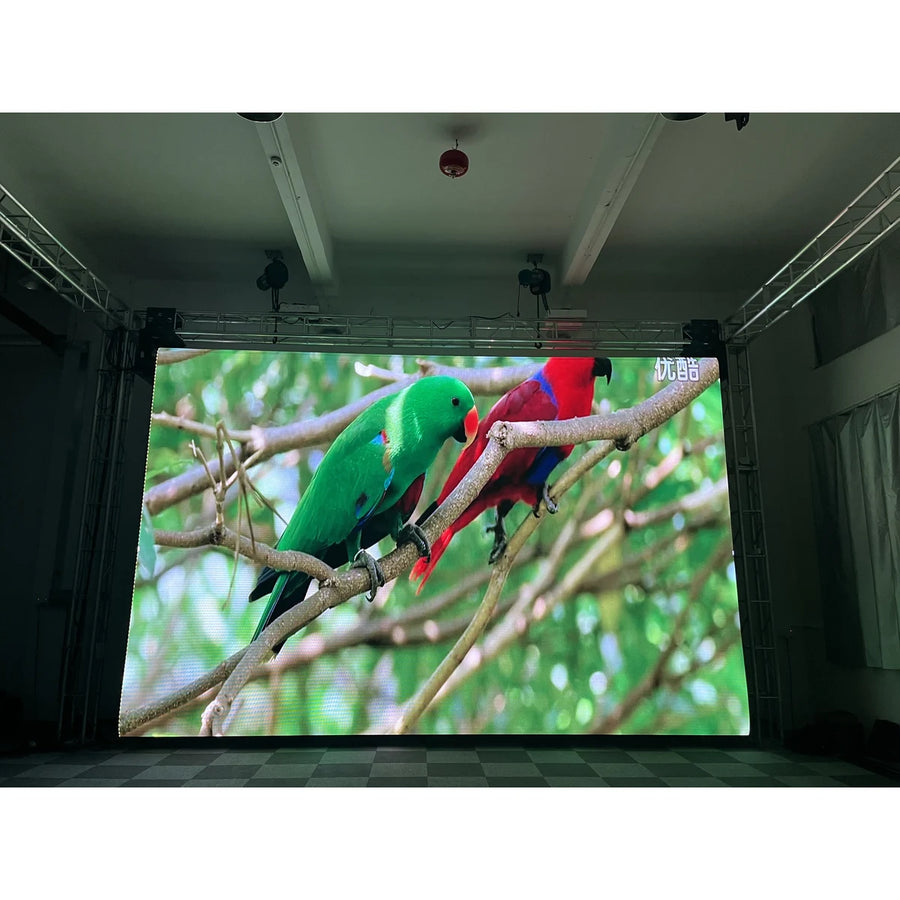

Rolling-Gate

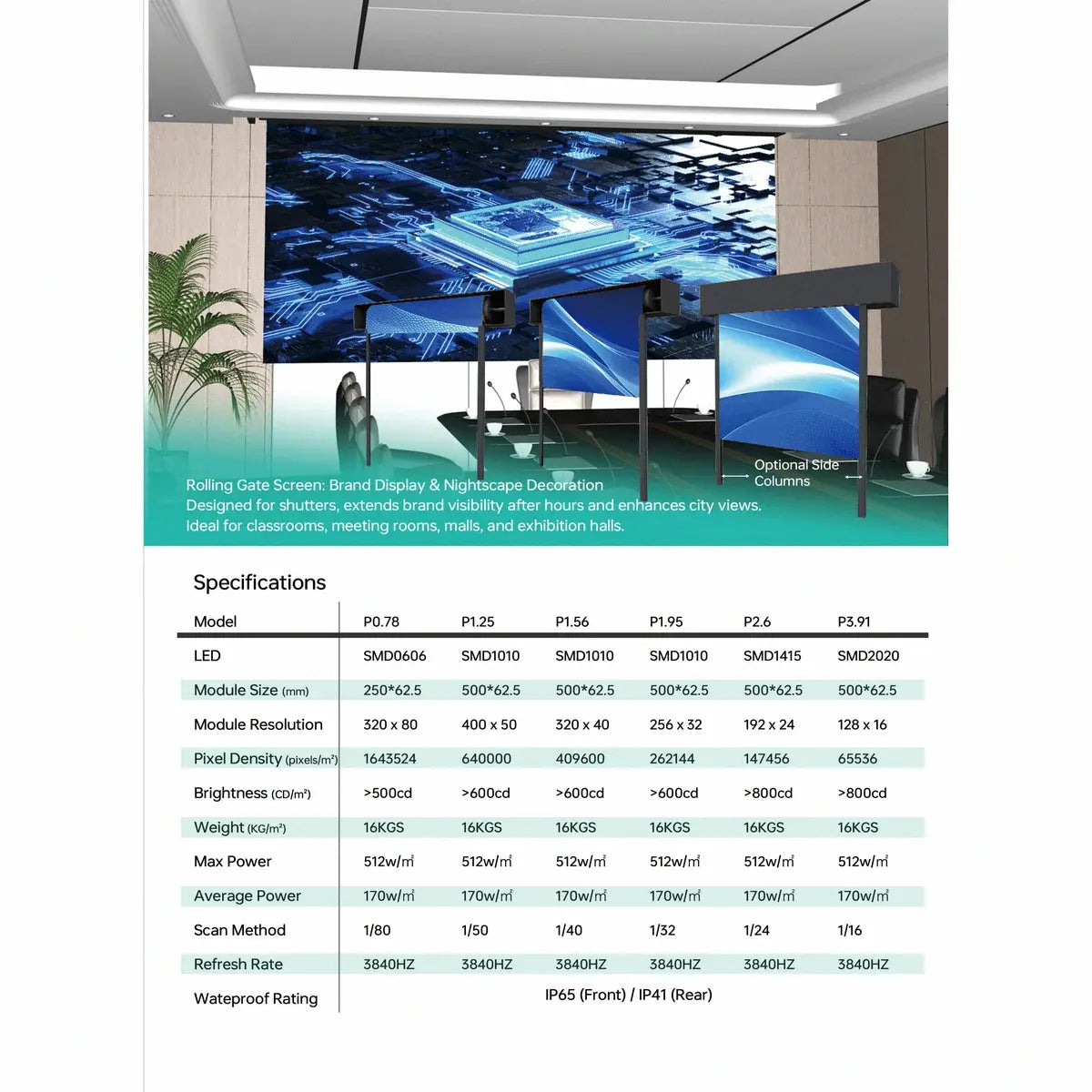

Specifications

Model	P0.78	P1.25	P1.56	P1.95	P2.6	P3.91
LED	SMD0606	SMD1010	SMD1010	SMD1010	SMD1415	SMD2020
Module Size (mm)	250*62.5	500*62.5	500*62.5	500*62.5	500*62.5	500*62.5
Module Resolution	320 x 80	400 x 50	320 x 40	256 x 32	192 x 24	128 x 16
Pixel Density (pixels/㎡)	1643524	640000	409600	262144	147456	65536
Brightness (CD/㎡)	＞500cd	＞600cd	＞600cd	＞600cd	＞800cd	＞800cd
Weight (KG/㎡)	16KGS	16KGS	16KGS	16KGS	16KGS	16KGS
Max Power	512w/㎡	512w/㎡	512w/㎡	512w/㎡	512w/㎡	512w/㎡
Average Power	170w/㎡	170w/㎡	170w/㎡	170w/㎡	170w/㎡	170w/㎡
Scan Method	1/80	1/50	1/40	1/32	1/24	1/16
Refresh Rate	3840HZ	3840HZ	3840HZ	3840HZ	3840HZ	3840HZ
Waterproof Rating	IP65 (Front) / IP41 (Rear)
